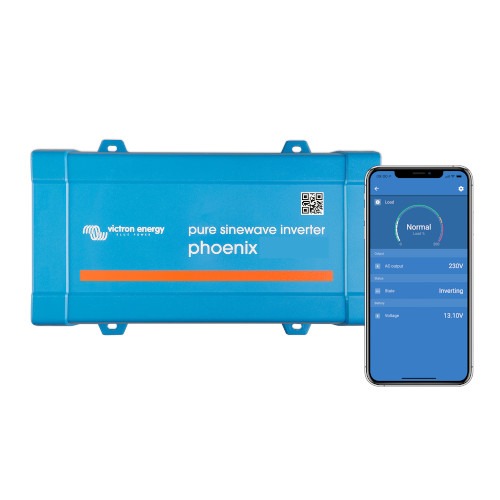

Victron Energy Phoenix Inverter 24/375 230V VE.Direct IEC – PIN241371100

Description

The Phoenix 24/375 VE.Direct inverter allows you to power domestic equipment – requiring 230V – using ‘leisure’ or ‘automotive’ batteries rated at 12V, 24V or 48V DC.

This unit has the IEC plug.



Features of the Phoenix Inverter 24/375 VE.Direct

VE.Direct communication port

The VE.Direct port can be connected to:

• A computer (VE.Direct to USB interface cable needed)
• Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed)



Fully configurable:

• Low battery voltage alarm trip and reset levels
• Low battery voltage cut-off and restart levels
• Dynamic cut-off: load dependent cut-off level
• Output voltage 210 – 245V
• Frequency 50 Hz or 60 Hz
• ECO mode on/off and ECO mode sense level



Monitoring:

• In- and output voltage, % load and alarms



Proven reliability

The full bridge plus toroidal transformer topology has proven its reliability over many years. The Phoenix Inverter 24/375 VE.Direct are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.



High start-up power

Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.



ECO mode

When in ECO mode, the Phoenix Inverter VE.Direct will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.



Remote on/off

A remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector.



DC connection with screw terminals

No special tools needed for installation.



Monitor, operate & control your system

VictronConnect lets you get live status information and configure your Phoenix Inverter 24/375 VE.Direct when connected to a VE.Direct Bluetooth Smart Dongle.



The REC040010210R is the correct controller for the Phoenix Inverter VE.Directs.
