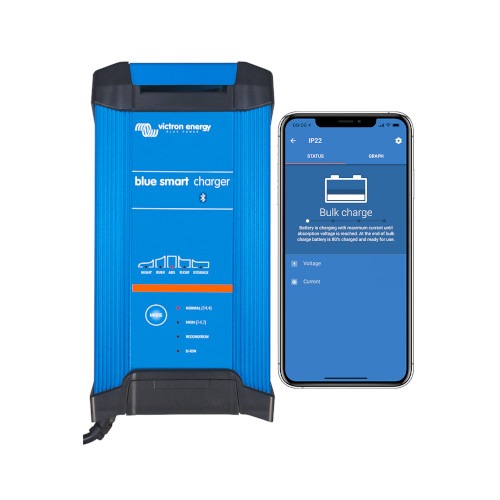

Victron Energy Blue Smart IP22 Charger 24/16(1) NEMA – BPC241647102

Description

The Blue Smart IP22 Charger is the new professional battery charger with built-in Bluetooth. This charger can be used on devices in your workshop and on motor vehicles, such as classic cars, motorbikes, boats and campervans.



Features of the Blue Smart IP22 Charger 24/16 (1)

Bluetooth Smart

The wireless solution to monitor voltage and current, change settings and update the charger when new featured become available.



High efficiency

Up to 94% efficiency, the Blue Smart IP22 Charger 24/16 (1) generates up to four times less heat when compared to the industry standard. One the battery is fully charged, power consumption reduces to  Watt which is five to ten times better than the industry standard.



Fully programmable charge algorithm

Absorption, Float and Storage voltages as well as the Recondition setting and the temperature compensation value can be programmed with the Bluetooth app.

After enabling the Expert mode, the app will allows changing practically all parameters and time limits used by the charge algorithm.



Adaptive 6-stage charge algorithm: test – bulk – absorption – recondition – float – storage

The IP22 Charger 24/16 (1) features a microprocessor controlled ‘adaptative’ battery management. The adaptive feature will automatically optimise the charging process relative to the way the battery is being used.



Also charges Li-on batteries

Li-on batteries are charged with a simple bulk – absorption – float algorithm.



Fully discharged battery recovery function

Will initiate charging even if the battery has been discharged to zero volts.

Will reconnect to a fully Li-on battery with internal disconnect function.



NIGHT and LOW setting
When in NIGHT or LOW mode, the output current is reduced to max. 50 % of the nominal output and the IP22 Charger will be totally noiseless. The NIGHT mode automatically ends after 8 hours. The LOW mode can be ended manually.



Want to improve battery charging? Why not take a look at the Victron Energy Battery Sense which measures voltage at the battery bank terminals, errors arising from voltage-loss due to cable resistance are avoided – guaranteeing the correct charge-voltage.
